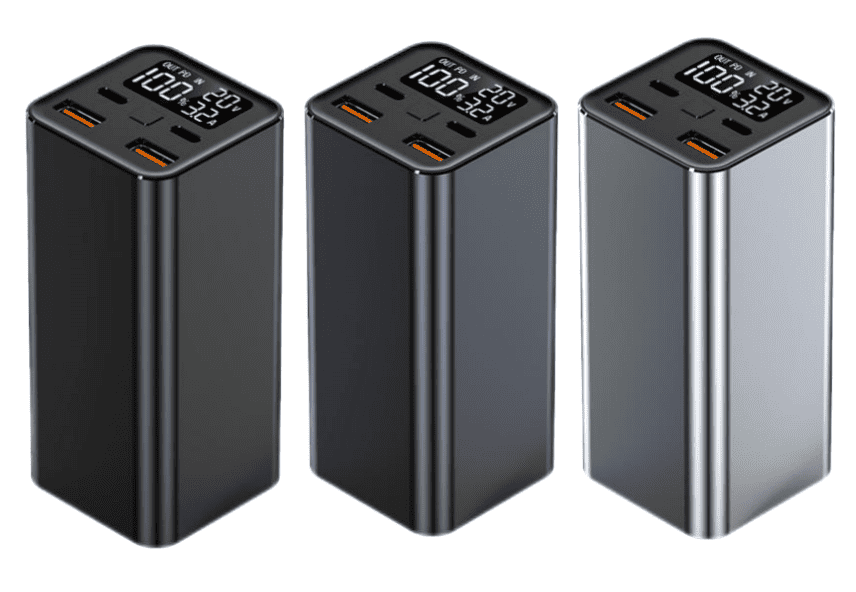

SXY-M2 Specifications (Single IC Version, Power Reduction of 5/3.0A when Charging Mobile Phone and Computer Simultaneously)
Type-C (1)/(2) Input: 5V/3A, 9V/3.0A, 12V/3.0A, 15V/3.0A, 20V/3.25A, (65W)
Type-C (1)/(2) outputs: 5V/3A, 9V/3.0A, 12V/3.0A, 15V/3.0A, 20V/5A, (100W)
usb(1)/usb(2) output: 5v/3A, 9v/2.0A, 12v/1.55A 10v/2.25A (22.5w)
The screen displays (fast charging lightning symbol, voltage and current display, battery level/188)
Single-port fast charging, multiple ports can be used simultaneously from 5V
Type-C1 + C2 output: 5V/3A (15W MAX)
Technical Specifications
Main control chip
Silan Microelectronics SD59D24C
Battery
21700mAh*4
Material
ABS + Aluminum Alloy
Product Dimensions
116*48*48mm
Net Weight
370g
OEM & ODM Services
Design Customization
-
Logo placement and branding
-
Custom housing colors and finishes
-
Packaging design and printing
-
Product shape modification
Feature Development
-
Custom firmware development
-
Chipset selection and optimization
-
Interface and control customization
-
Performance tuning and optimization
Ready to customize this product for your brand?
Our engineering team will work with you to develop the perfect solution for your market needs.
